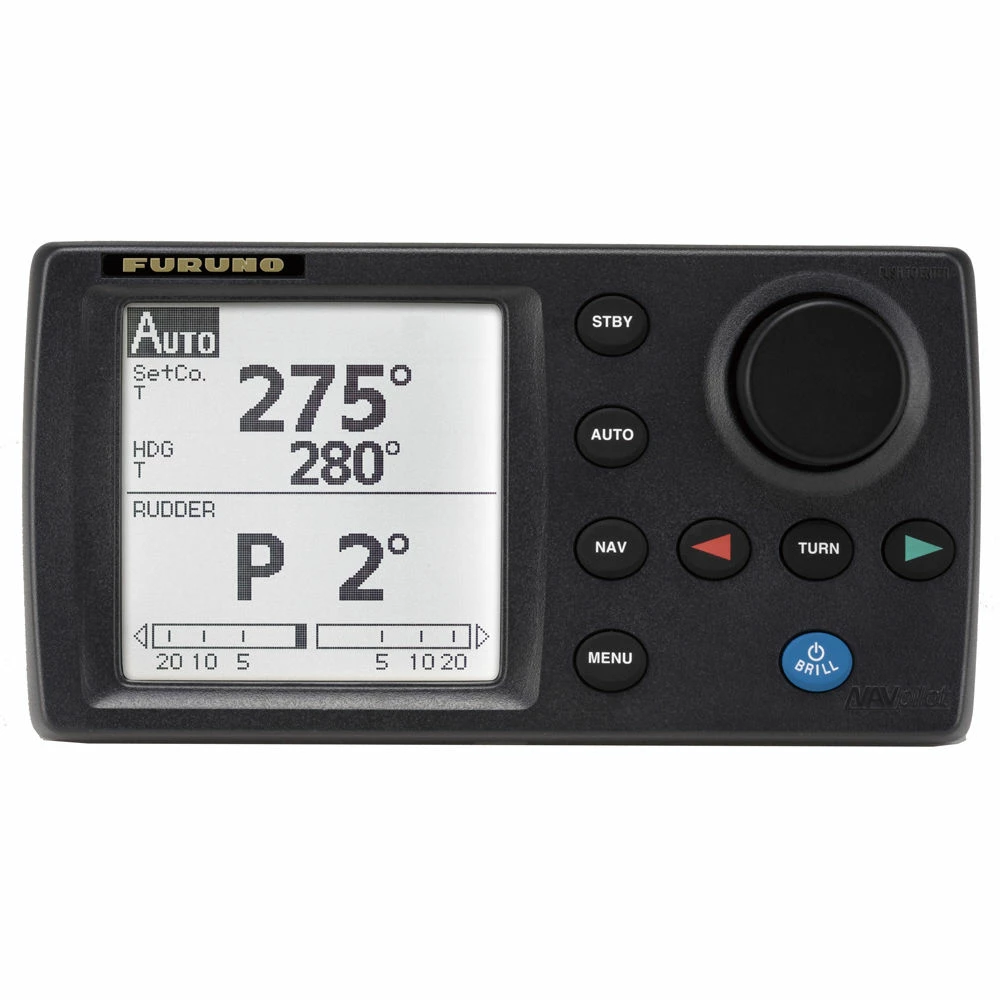

Furuno NavPilot 700 Autopilot

A state-of-the-art autopilot experience

Kick back, relax and let the Furuno NavPilot 700
Autopilot steer you to your destination! It utilizes the
Fantum Feedback technology, a self-learning and adaptive software
algorithm which dynamically adjusts essential parameters for
navigation ensuring you of an accurate route on every trip. With
its 4.6” sunlight viewable display, data can be easily viewed even
from a distance.

Safe Helm and Power Assist features
Both Safe Helm and Power Assist features provide unrivaled steering
comfort and control directly from any manual helm on the vessel.
These two modes greatly reduce steering effort and enhance the
safety of your autopilot. The Power Assist mode is a unique
helm-activated assisted steering feature that can add or replace
separate electric and power-robbing, engine-driven power steering
systems on many vessels. The Safe Helm and Power Assist modes will
require the optional FPS8 Power Steering Module and an appropriate
HRP pumpset.

FishHunter mode
A unique feature of the NavPilot 700 is the FishHunter mode.
Discovered premium fishing zones with the Furuno sonar or targeted
birds with the radar? Send the information to your NavPilot 700 and
as the autopilot receives this information, it activates the
FishHunter mode allowing you to perform square, zigzag, orbit,
spiral, or figure 8-patterns around your targets for a sure
catch.

Note: This listing is for the Furuno NavPilot 700
Autopilot only. Pump not included.

Furuno NavPilot 700 Autopilot Features:

• Revolutionary Safe Helm and Power Assist option brings
  unrivaled steering comfort and control at the helm
• Selectable “Economy” and “Precision” Navigation Modes combine
  adaptive technology providing fuel and power savings of up to 2.5%
  or more.
• “Precision” XTE accuracy: within 18 ft.
• Dual NMEA2000 network interface and Furuno CAN bus interface
  provides isolation and redundancy for safety
• Simplified activation set-up by on-screen wizard
• Perfect for inboard or outboard power boats and sail
  boats
• Simple one-touch mode selection enables flexible steering and
  course control
• Perfect cosmetic match with NavNet 3D, FI50 instrument series,
  GP33 GPS Navigator and RD33 Data Display
• Mix and match up to 6 displays in a single network

Furuno NavPilot 700 Autopilot Specifications:

• Display: 4.6″ MONO LCD
• Effective Display Area (WxH): 85.2 x 85.2 mm
• Pixel Number: 160 x 160 dots
• Backlight: 8 steps
• Contrast: 16 steps
• Rudder Angle Adjustment: STBY, Auto, Dodge, Turn, Remote,
  Advanced auto*, Navigation*, Wind*, FishHunter* (* external data
  required)
• Sea Condition Adjustment:
  Auto/Manual-Calm/Moderate/Rough
• Rudder Angle Settings: 10 – 45 deg
• Alarm: Heading deviation, Cross-track error*, Ship’s speed*,
  Depth*, Water temperature*, Wind*, Watch, Log trip* (* external
  data required)
• Ports: CAN bus (NMEA2000): 1, NMEA0183: 2
• Temperature: -15˚C to +55˚C
• Waterproofing Processor unit: IP20
• Power Supply: 12-24 VDC: 4.0 – 2.0 A (excluding pump)
