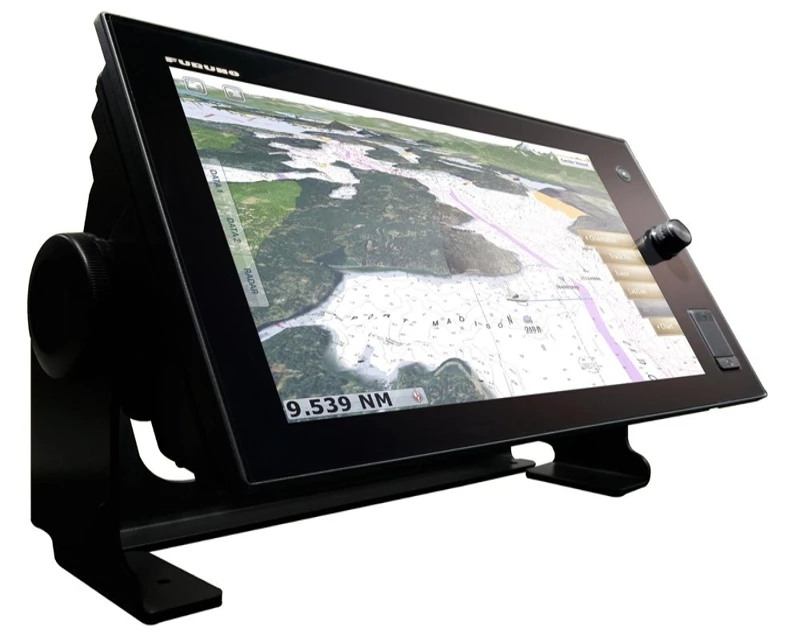

Furuno NavNet TZTouch 14” GPS/Fishfinder Combo

Total control at your fingertips

Furuno elevates marine touch screen technology to an entirely new
level with the industry’s first multi touch MFD. The Furuno
TZT14 14in Tztouch Multi-function Display comes with an
anti-reflective glass coating that makes the screen visible under
any lighting conditions. TZTouch brings you pinch-to-zoom
capability, as well as other multi touch gestures for the most
intuitive navigation experience. Furuno TZT14’s TimeZero technology
delivers chart processing like you’ve never seen before – seamless
chart handling, zooming and panning without the screen
disappearing. It redefines the meaning of stress-free operation by
smoothing out your chart handling actions. What’s more, this
TZTouch multi-function display also has the ability to interface
with Apple iPads, iPhones, and iPod Touch, wherein you have the
ability to wirelessly view and control your TZT14.

Furuno TZT14 14in TZTouch Multi-function Display
Features:

• Sunlight viewable 14.1 WVGA (1280×800 pixels) multi touch LCD
  display
• Touch screen with multi touch
• Marine weather forecaster
• Tablet & smartphone apps
• WiFi hotspot connectivity
• Anti-reflective glass coating
• Built on an Ethernet network
• NMEA2000 network interface
• Network up to 6 TZTouch displays
• Dual SD card slots
• Preloaded with free official NOAA raster and vector
  charts
• Optional C-Map by Jeppesen and Datacore by Navionics
  vector
• Home key for immediate access to the menu and a carousel of
  your customized display configurations
• Save up to 30,000 user points, 30,000 ships track points and
  1,000 planned routes with up to 500 waypoints per route

Furuno TZT14 14in TZTouch Multi-function Display
Specifications:

• Display unit: 14.1in wide color TFT multi touch LCD
• Screen brightness: 900 cd/㎡
• Screen resolution: WVGA 1280 x 800 pixels
• Position accuracy (GPS): 10m
• Position accuracy (MSAS): 7m
• Position accuracy (WAAS): 3m
• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Target tracking: 30 targets
• AIS: Up to 100 targets
• CAN bus: 1 Port
• LAN: 3 Port (100 BASE-TX)
• USB Port: 1 Port (USB2.0)
• Video output: 1 Port (DVI-D)
• Video input: 2 Ports (NTSC/PAL)
• SD card slot: 2 Slots (SDXC card – supports up to
  128GB)
• Waterproofing: IP56
• Power supply: 12-24vDC, 60W (3.5 – 1.8A)
• Tabletop mount dimension: 273 x 428 x 150 (H x W x D)
• Flush mount dimensions: 245 x 395 x 130 (H x W x D)
• Tabletop mount weight: 8.0kg
• Flush mount weight: 7.1kg
• Echo trail interval: 15s, 30s, 1min, 3mins, 6mins, 15mins,
  30mins and continuous
• Language: English (US & UK), French, Spanish, German, Italian,
  Portuguese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese,
  Japanese
