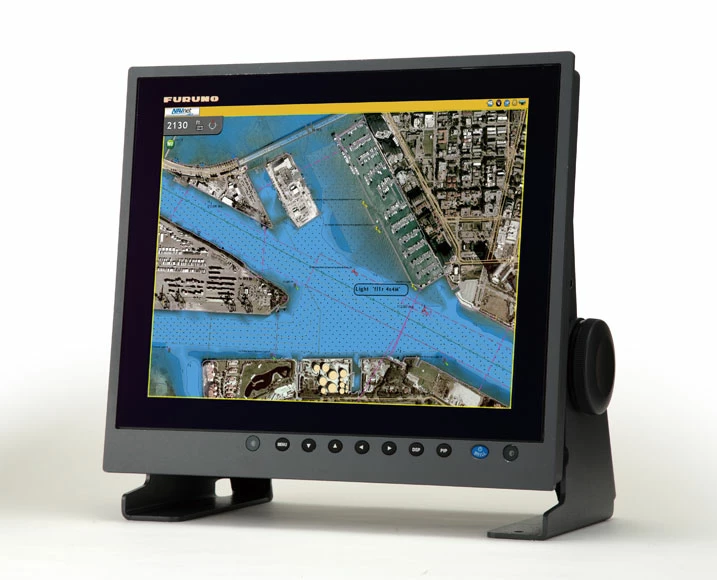

Furuno MU-150HD 15” Multi-Purpose Marine LCD HD Display

Need a bright idea? How about using Furuno marine grade monitor
in your helm!

The is a multi-purpose marine LCD that features the unmatched
quality and reliability that you have learned to depend on. The
MU-150HD employs an extremely bright, sunlight viewable (1,000
cd/m2) colour TFT LCD with special AR (anti-reflective) glass
filter to cut down on annoying glare. With its bright colors,
excellent contrast and wide viewing angles, this monitor is perfect
for any tropical sunlight or low light conditions. Furthermore, the
LCDs and the glass are bonded together ensure fog free operation on
open fly-bridge installations.

The MU-150HD features XGA (1024 x 768) screen resolution, with a
built-in scaler to accept resolution up to SXGA (1280 x 1024). It’s
wide range of interface options include: 1 RGB analog, 2 DVI
(Digital Video Interface) and 3 NTSC/PAL video inputs. The display
may be used as either the main or remote display for a variety of
marine equipment, such as Black Box Radar, Sounder, Sonar or NavNet
series. The unit can also display images from security cameras, DVD
player, computers or other peripheral devices.

Flush mount installation
Low Profile flush mounting provides a custom console appearance.
Two or more MU-150HD can be fitted side by side seamlessly on your
console when flush mounted. This monitor features slim case design
that put a larger display into a more confined helm space.

Picture In Picture (PIP)
Composite video (NTSC/PAL) input is available for displaying video
images from an onboard TV/DVD player. With more than two Composite
Video Inputs, the images in the PIP window automatically switch
every few seconds.

Low power consumption
Utilising the latest LED backlight, the MU-150HD delivers sharp,
high quality images with bright colours and all at very low power
consumption.

Slim, lightweight and compact
The MU-150HD features a slim depth, lightweight and compact body
that fits in your console. It’s space saving design makes optimum
use of your dashboard.

Furuno MU-150HD 15” Multi-Purpose Marine LCD HD Display
Features:

• Crystal clear 15″ marine grade monitor for use as main or
  remote display
• 1024 x 768 XGA Screen Resolution
• Built-in scaler accepts up to SXGA (1280 x 1024)
  resolution
• 1,000 cd/m2 brightness and A/R coating provides superior
  visibility even in direct sunlight
• Bonded LCD provides clear view in any weather
  conditions
• Automatic dimmer sensor adjusts the display brightness as light
  conditions change
• 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL
  interfaces available
• Any of the three NTSC inputs are PIP (Picture-In-Picture)
  capable, with adjustable size and screen location
• Table top/Ceiling or Flush Mount (Table Top/Ceiling mounting
  bracket is optional)
• Customisable input names for easy on-the-fly identification and
  switching between onboard Radar, Sonar, Sounder, Camera,
  etc.
• Automatic signal recognition and scaling for easy setup and
  installation

Furuno MU-150HD 15” Multi-Purpose Marine LCD HD Display
Specifications:

Display

• Screen size: 15″ (304.1 x 228.1mm)
• Resolution: 1024 x 768 (XGA)
• Contrast Ratio: 600:1
• Viewing Angle
  Vertical: up 80° to down 80° or more
  Horizontal: left 80° to right 80° or more
• Brightness: Max. 1000 cd/m2, Min. 0.2 cd/m2 or under
• Interface:
  Analog RGB: 1 port, D-SUB/15 pins
  DVI: 2 ports, DVI-HD
  Composite Video: 3 ports, NTSC/PAL

Others

• Power supply: 12-14 VDC, 4.5-2.2A
• Temperature: -15 °C to + 55 °C
• Waterproofing: IP56 (CFR46 Front Panel), IP22 (Back
  Panel)
• EMC: IEC 60945 4th

What’s in the box:

• Display unit
• Installation materials and spare parts

Furuno MU-150HD 15” Multi-Purpose Marine LCD HD Display
Brochure

Furuno MU-150HD 15” Multi-Purpose Marine LCD HD Display Operator’s
Manual

Note: Mounting bracket (OP26-2) sold
separately.
