Furuno FAX-30 Black Box WeatherFax And NavTex Receiver

Valuable weather images and navigational information

The Furuno FAX-30 Black Box WeatherFax and NavTex
Receiver can turn any NavNet display or PC into a
Weatherfax and Navtex receiver. This waterproof inchBlack Boxinch
unit connects directly to a NavNet display or an Ethernet hub with
a single Ethernet cable. If it is connected to an Ethernet hub that
has multiple 10.4inch NavNet displays attached, each of those
displays will have access to the FAX30. In addition, the FAX30 has
the capability of being connected to a standard PC with Ethernet
card.

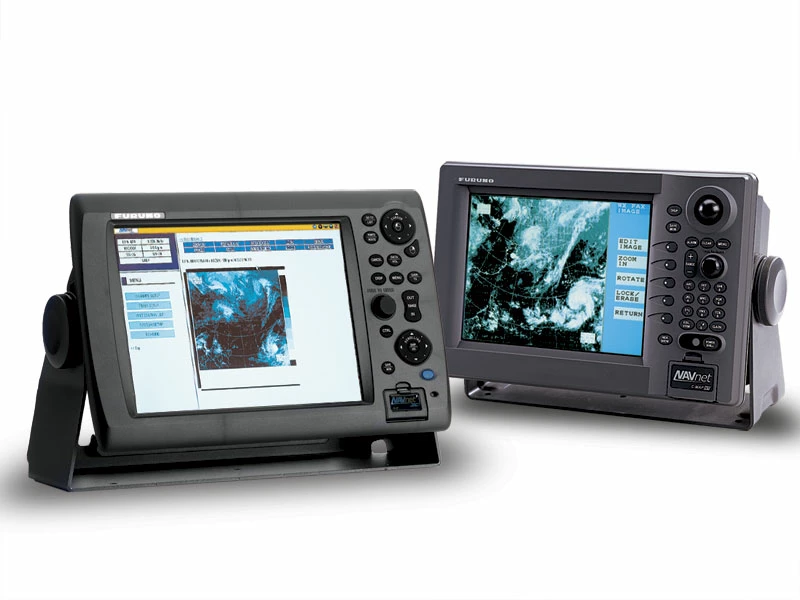

The unit itself receives valuable weather images and
navigational information. When connected to a 10.4inch NavNet
display, the image and information is displayed directly on screen,
with softkey menu options for ease of use. On a PC, the images and
information are displayed by simply using your Web Browser. There
is no complicated proprietary software to install or learn. You can
even print all of the information using your PC and printer!

Combine the new FAX30 with NavNet’s true color Radar and you
have the ultimate in weather tracking. Now you can navigate more
safely even during uncertain conditions.

Furuno FAX-30 Black Box WeatherFax and NavTex Receiver
Featues:

• Cost effective paperless weatherfax and Navtex receiver
• Connect directly to a NavNet 3D or 10.4inch NavNet vx2 display
  or through an Ethernet hub
• Connect to a generic PC equipped with Ethernet
• Selectable display colors: 8 gray tones, monochrome, blue
  shades, pink and black, red and blue
• User friendly softkey menu operation on NavNet display
• Web browser navigation on generic PC, no proprietary software
  required
• Print images and messages from generic PC and printer
• Store a maximum of 12 weatherfax images (depending on file
  size)
• Navtex messages can be retrieved in a table listing of up to
  130 stored files
• Stored images/messages can be shown at any time
• 320 user programmed channels
• Noise rejection for clear image
• Thumbnail view for easy selection of stored images
• Phase and synchronization adjustments even after completed
  reception
• Fax Frequency Range:LF – 80 kHz to 160 kHzMF/HF – 2 MHz to 25
  MHz
• Navtex Frequency Range:490 kHz or 518 kHz1,000 channels
• Fax Mode of Reception:F3C, J3C
• Navtex Mode of Reception: F1B
• Waterproof – IEC 60529
