Furuno CA82B-35R Tank-Mounted Transducer 65-110kHz 2kw

High quality. Wide bandwidth

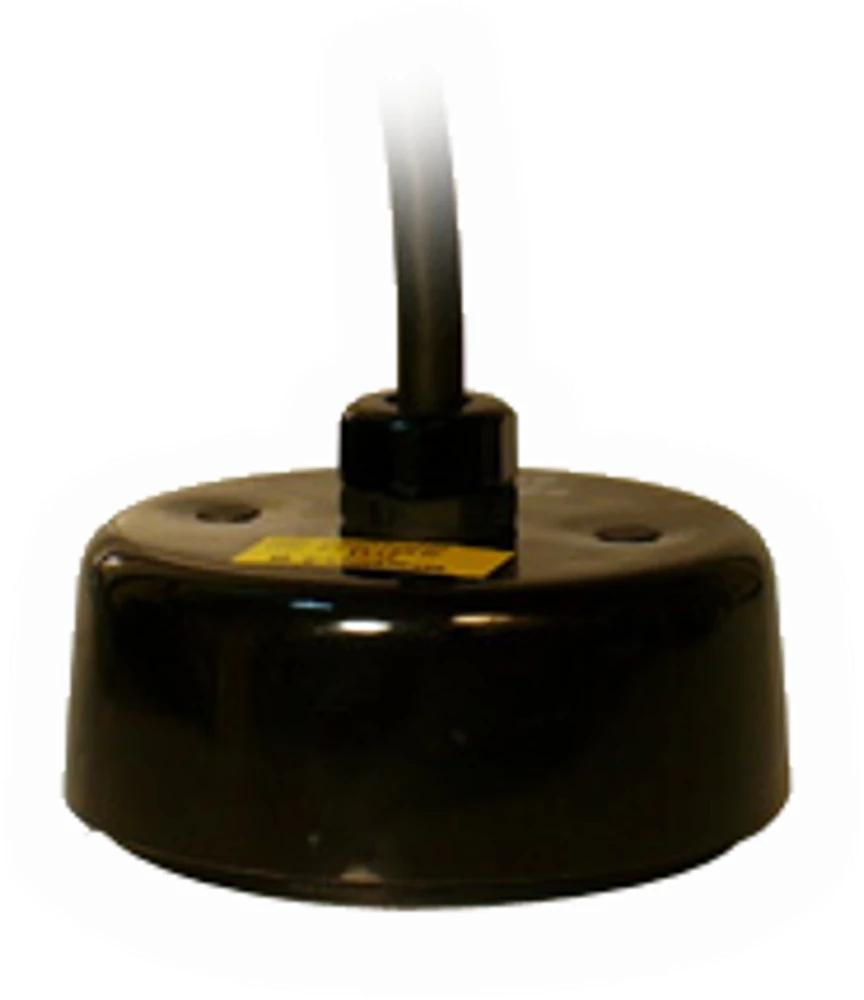

The Furuno CA82B-35R Tank-Mounted Transducer
features a wide bandwidth of 65kHz-110kHz, and is useable with the
FCV295, FCV292 (88kHz frequency only), FCV1150, FCV1100, FCV1200,
DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity
remains high even if the frequency is shifted +/- 10% to suppress
interference.

The CA82B-35R may be installed in the tank of the CA88B-10 or
CA100B-10R. When retrofitting these or other transducers, the
directional pattern and sidelobe characteristics of the beam will
be different, and therefore the sounder image may differ from
previous installations.

Furuno CA82B-35R Tank-Mounted Transducer
Features:

• 2 kW
• Selectable frequency – 65kHz to 110kHz
• Beam angle becomes sharper at higher frequencies:
  68kHz = 12.5 degrees
  88kHz = 9.6 degrees
  107kHz = 7.7 degrees
• Rugged FRP construction – tank mounted
• 15 metre cable, no connector provided

Furuno CA82B-35R Tank-Mounted Transducer
Specifications:

• Frequency: Selectable
• Housing Type: FRP
• Install Type: External
• Power Rating: 2kW
