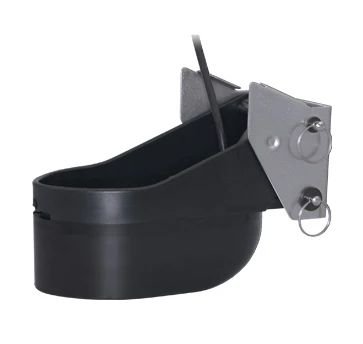

Furuno 525TID-TMD (Airmar M258) Transom Mount Transducer

Fast and accurate transom-mount transducer

The re-designed Furuno 525TID-TMD Transom Mount
Transducer sports a new look and better high-speed
performance. The industry’s first, 1 kW, transom-mount transducer
has a new, rugged, mounting bracket. The sleek design of its Airmar
M258 housing makes it easier to install. And its streamlined shape
will give you improved high-speed performance up to 30 knots (35
MPH). This version of the transducer is for Furuno sounders and
fishfinders that use the standard Furuno 10-pin transducer
connector.

Get 16-times the sensitivity compared with a standard
transom-mounted transducer! The Furuno 525TID-TMD Transom
Mount Transducer features a fast-response temperature
sensor that is designed to enhance the performance of any 600W
sounder or fishfinder. The TM258 packs four, 50 kHz/200 kHz
elements to focus narrow beams at both frequencies, so youll see
crisp targets and clear bottom definition.

Furuno 525TID-TMD Transom Mount Transducer
Features:

• Furuno model number: 525TID-TMD
• Airmar M258 Housing Style Transducer
• Transom Mount with Temperature
• Install type: transom mount
• Housing type: Plastic
• Power rating: 1kW
• Frequency: 50/200kHz
• RMS power 1000W, adapts to 600W
• Beam width: 15×21° (50kHz), 3×5° (200kHz)
• Depth readings up to 1500-2200 ft at 50kHz, 700-1000 ft at
  200kHz
• Includes 10m cable with 10-pin connector

Furuno 525TID-TMD (Airmar M258) Transom Mount Transducer
Installation Instructions
