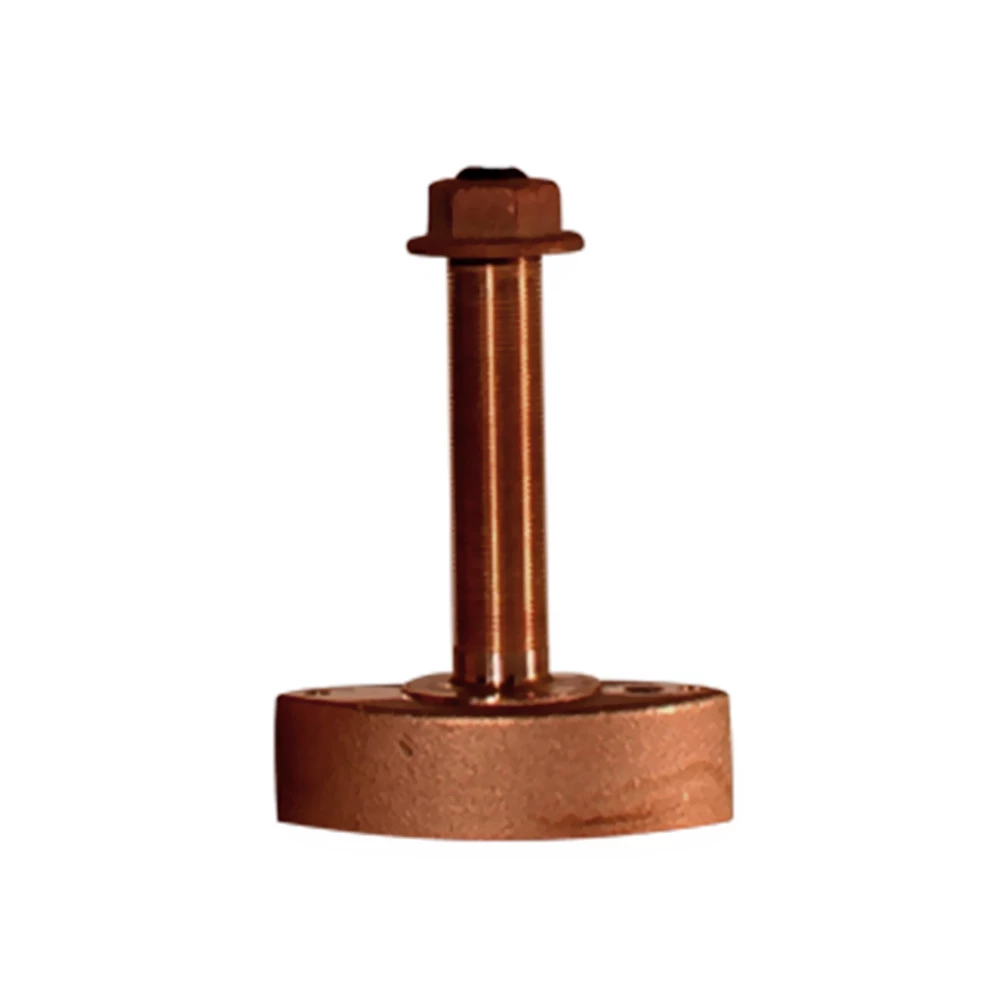

Furuno 525T-BSD (Airmar B45) Bronze Thru-hull Transducer

Accurate and sensitive

The Furuno 525T-BSD Bronze Thru-hull Transducer is
a compact dual-frequency transducer with an external fairing that
can be cut to match deadrise angles of up to 24 degrees. It
features a unique streamlined shape that deflects aerated water
from the transducer’s face for strong return echoes and clear image
displays. This version has a Furuno 10-pin connector and is sold by
Furuno as part 525T-BSD.

Furuno 525T-BSD Bronze Thru-hull Transducer
Features:

• Shielded ceramic element for noise-free echo sounder
  display
• Small, low cost bronze housing
• Double-ended shape of housing deflects aerated water to provide
  clearer echoes
• Suitable for planing-hull powerboats and cruising sailboats up
  to 30 ft. in length
• Fast-response water temperature sensor accurate to
  ±0.1°F

Furuno 525T-BSD Bronze Thru-hull Transducer
Specifications:

• Furuno model number: 525T-BSD
• Airmar B45 Housing Style Transducer
• Function: Depth/Temperature
• Material: Bronze
• Frequency: 50/200kHz
• Cone: 45°/15°
• Power: 600W RMS
• Connector: 10-pin
• Mount: Thru-hull
• Connector: 10-pin
• Cable: 30 ft.
• Depth range: 800 -1200ft (50kHz) / 400 -700ft (200kHz)
• Acoustic window material: Urethane
• Compatible hull materials: fibreglass or wood
• Hole diameter for installation: 0.875in
• Dimensions (LxWxH): 3.97in x 2.15in x 4.5in
